Multifunction Electric Platform For Disabled L-150

Multifunction Electric Platform For Disabled L-150

Frais d'expédition calculés à l'étape de paiement.

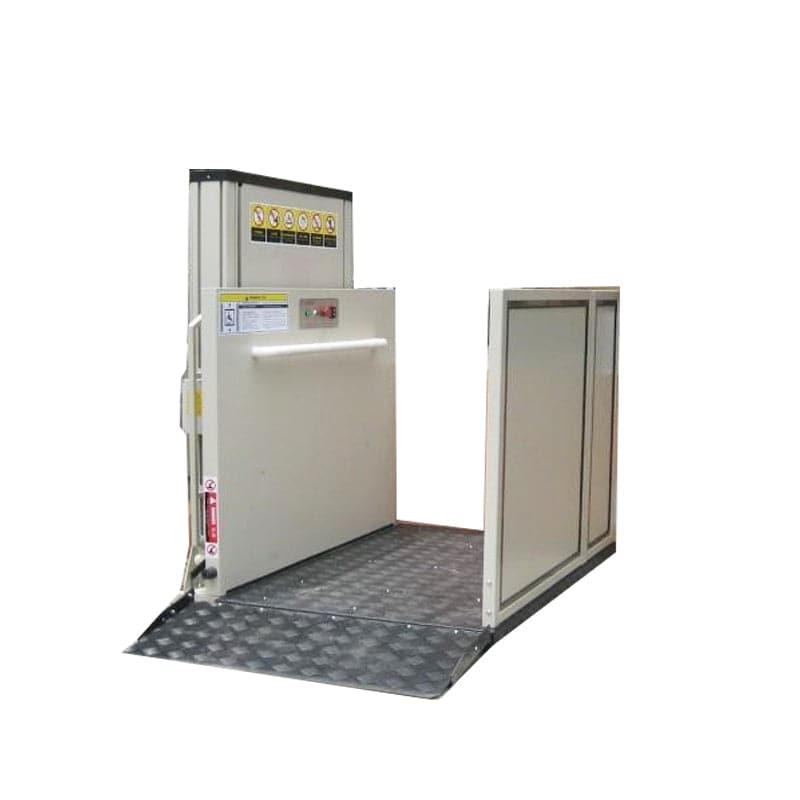

The electric lifting platform for disabled is composed of three parts: lifting platform, guide rail and drive box.

The lifting platform is made of C-shaped steel as the main component, using "rocker self-resetting switch for operation", installed without foundation pit, and directly fixed on the concrete floor (in the case of outdoor application without a bottom pit, the concrete floor under the platform should not be lower than the surrounding Ground), when the manual hydraulic valve is opened, the lifting bottom plate can be manually lowered.
Hydraulically driven, stable and safe lifting, the exterior is made of brushed stainless steel and aluminum electrostatically sprayed plastic chassis/panel, the appearance is small and beautiful, and does not hinder the surrounding environment.

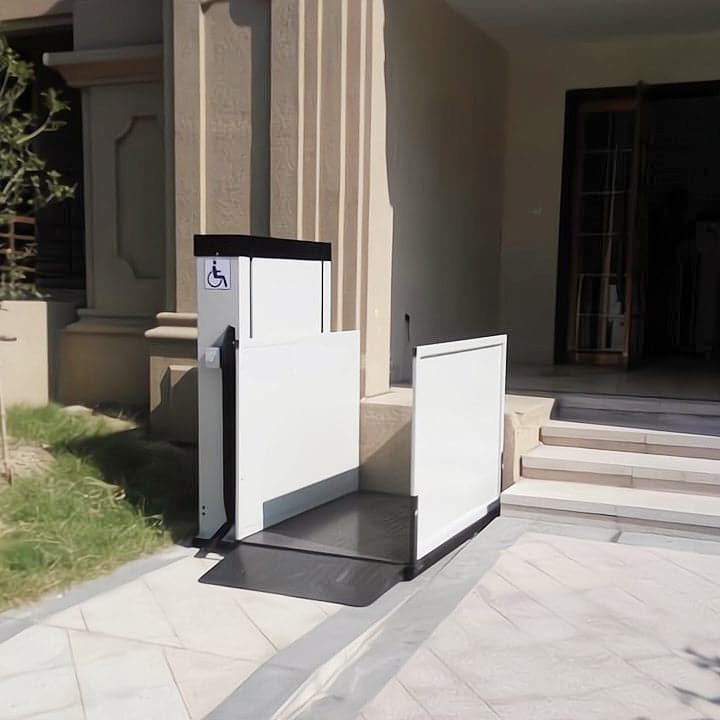

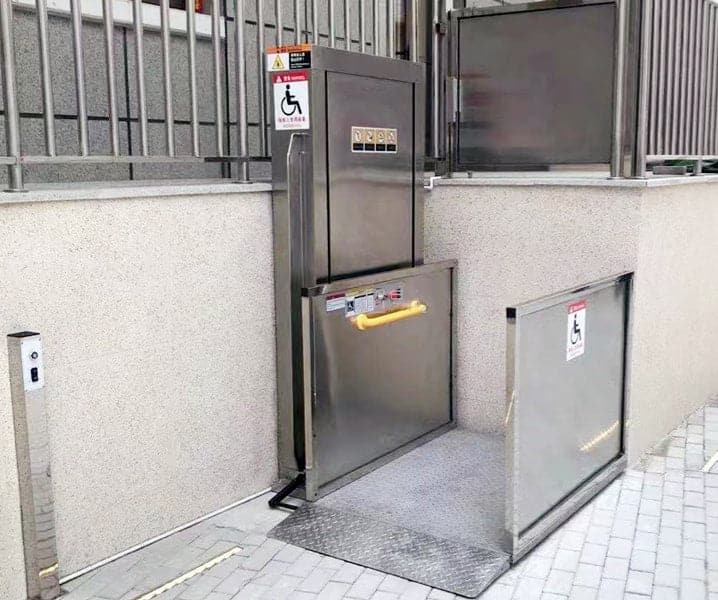

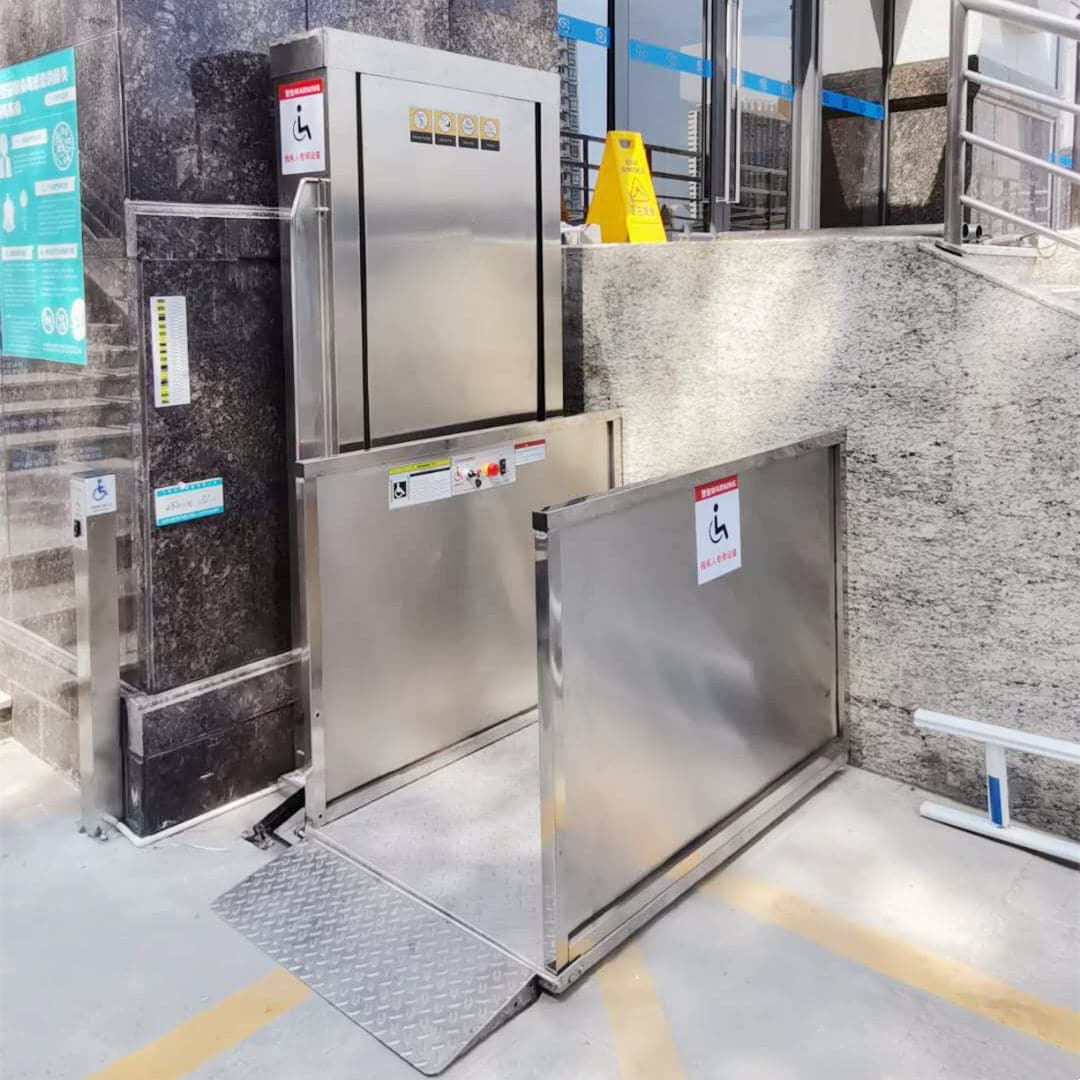

The lifting platform for the disabled is directly installed on the ground without supporting pits for civil engineering. It is easy to construct, and it is not easy to accumulate water and rust when placed outdoors, and it is easy to maintain.
Lifting height up to 6 meters.

  • Power supply: 220V/50HZ
  • Overall plane dimensions of the whole machine: 1768mm×1290mm×L+600 mm (length, width and height)
  • Lifting base plate size: 1370mm (length) × 922mm (width)
  • Maximum lifting height: 6000mm
  • Minimum height of lift floor: 80mm (from the ground)
  • Installation method: No foundation pit installation (directly fixed on the C30 concrete level ground, the concrete thickness is not less than 200mm)
  • Lifting speed: 70mm/s (hydraulic drive) 40mm/s (screw drive)
  • Maximum load capacity: 250kg (European and American standards)
  • Shield form: 90° configuration or 180° configuration
  • Rocker working angle: 75°  
  • Drive mode: hydraulic drive or precision screw drive
  • Control power supply voltage: 24V/DC
  • Motor power: 1.5kw 220V/AC
  • Lift control: Rocker self-resetting switch operation.
  • Outbound call form: The upper and lower outbound call columns are installed on the ground near the landing floor and run up and down with the equipment linkage control platform.
  • Applicable environment: indoor or outdoor
  • Applicable temperature: -20°C—60°C
  • Equipment Appearance: 304 stainless steel wire drawing plate is used for exterior decoration of the whole machine or standard model polymer isolation film covering.
  • Safe rocker: When the equipment is running and rising, the rocker will automatically tilt up to prevent the wheelchair from slipping out of the platform.
  • Anti-drop protection: The main and auxiliary nuts rely on the transmission, and the joint control runs the anti-drop protection.
  • Overload protection: Overcurrent relay control.
  • Emergency stop: Press the emergency button switch to control the machine to run up or down.  
  • Emergency descent: manual crank operation emergency descent.
  • Safety net: When the lifting bottom plate descends, the safety net below will immediately stop running and descend when encountering an obstacle.

DESCRIPTION

Echo Elevador Partes (EEP) is striving to provide you with all spare parts for elevator and escalator maintenance and upgrades.

Our products include but are not limited to:

Elevator buttons, elevator circuit boards, elevator encoders, elevator decoders, elevator motors, elevator controllers, elevator contactors, elevator sliders, elevator door wheels, elevator traction wheels, elevator sensors, elevator locks, elevator switches, elevator door vane, elevator door lock, elevator female lock, elevator door operators, elevator light curtain, elevator steel rope, elevator drive inverter, elevator modernization components ……

Escalator step frames, escalator steps, escalator comb plates, escalator rotary chains, escalator step chains, escalator step rollers, escalator friction wheels, escalator drive wheels, escalator handrail, escalator limit switches, escalator step missing photoelectric sensors,escalator lock sets……

IMPORTANT INFO

For technical support and latest quotation of wholesale business, please E-amil us at service@echoelevadorpartes.com

Please make sure you know how to use the product or you have a technical team to provide you with elevator repair services before purchasing. If you do not know the specific usage of this product, please contact us in advance.
If there is an after-sales problem that the product cannot be used due to lack of technical knowledge, we can only provide technical support and cannot accept returns or exchanges.

Please make sure you are aware of your country's import tax policy before purchasing. Our store only charges you for the goods and international freight, and the import tax will be charged to you by the local customs when the goods arrive at the destination country.

All of the orders over 30KG please contact the customer service to get a real time quote before purchasing. If the order has been paid already, our customer service will e-mail you to confirm the real time shipping fee and the international logistic carrier. This action may increase the original order amount. You can pay the shipping fee by PayPal, Western Union or bank transfer, or place a new order after deleting the original one on the website. For your convenience, we sincerely recommend that you contact customer service to determine the final order amount before placing an order.

Please notice that products sold are not refundable or replaceable for non-quality requirements, and all customized products are non-exchangeable, non-returnable and non-refundable.

Если вы из России, Белоруссии, Казахстана и других стран, пожалуйста, заранее свяжитесь с менеджером по работе с клиентами, чтобы рассчитать стоимость доставки для вас перед оформлением заказа. Мы предоставляем более экономичную услугу доставки для клиентов в этих странах.

SHIPPING INFORMATION

Orders are normally shipped within 4-7 business days if the item(s) are in stock. If an item(s) is out of stock you will be notified by E-mail.

Small spare parts which under 2KG, can be delivered in several ways, which all depend on your preference.

All of the orders over 30KG please contact the customer service to get a real time quote before purchasing. If the order has been paid already, our customer service will e-mail you to confirm the real time shipping fee and the international logistic carrier. This action may increase the original order amount. You can pay the shipping fee by PayPal, Western Union or bank transfer, or place a new order after deleting the original one on the website. For your convenience, we sincerely recommend that you contact customer service to determine the final order amount before placing an order.

Please be aware that shipping costs vary from service providers and time, contact us through Email to get quotes: service@echoelevadorpartes.com

Если вы из России, Белоруссии, Казахстана и других стран, пожалуйста, заранее свяжитесь с менеджером по работе с клиентами, чтобы рассчитать стоимость доставки для вас перед оформлением заказа. Мы предоставляем более экономичную услугу доставки для клиентов в этих странах.

Elevator and escalator will be shipping by sea mostly, Max can load 5-6 elevators/40HQ, but only 1 escalator/40HQ normally (due to their different shapes). Shipping by sea will arrive from 10-50 days depending on final destinations.

WARRANTY

The product is covered by 1-year warranty since purchase, except in the cases of artificial damage and misuses.
